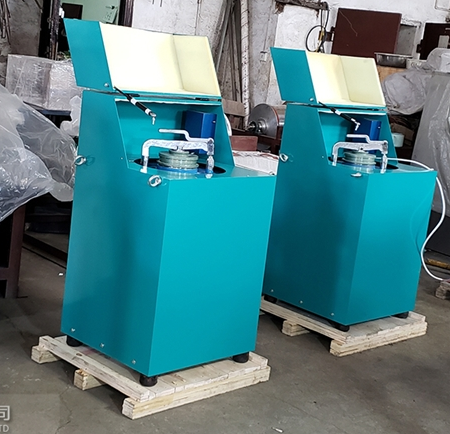

振動磨機是一種球磨腔與下部的振動機構固定在一起,通過振動電機帶動兩個可調式偏心塊旋轉,使筒體振動，強制筒體內研磨介質和物料高頻振動，使物料受到研磨介質強烈的沖擊、摩擦和剪切作用使物料粉碎。細顆粒通過磨腔低部篩欄經過蠕動泵重新進入球磨腔,粗顆粒仍然停留在磨腔內繼續球磨。 該機不論結構還是流程配置都非常成熟； 該機廣泛用于電子、陶瓷、化工、粉末金屬、鎢、碳化鈣、橡膠化合物、磁性材料和無線電工業的高頻瓷材料和制藥等領域。 特殊選項：缸體內襯：可選不銹鋼、陶瓷（氧化鋁)、氧化鋯、瓷磚、尼龍、聚四氟乙烯、食用級橡膠或聚氨酯等內襯。

With this vibration mill, the  ball grinding chamber is fixed with the vibration mechanism below it which  drives the rotation of two adjustable eccentric blocks, to get the drum to  vibrate; the grinding media and materials in the drum are forced to start  high-frequency vibration so that the materials are crushed due to violent  impact, friction, and shearing actions from grinding materials. The fine  particles pass the peristaltic pump through the screen fence at the bottom of  the grinding chamber, and then enter the ball grinding chamber again while the  coarse ones are still in the grinding chamber for further milling. No matter in  structure or in work flow, this machine is very mature. Such mills are widely  used in fields such as electronics, ceramics, chemicals, powered metal,  tungsten, calcium carbide, rubber compound, magnetic materials, radioceramic  materials in radio industry, and pharmacy. The material of cylinder lining can  be stainless steel, ceramics (aluminum oxide), zirconium oxide, ceramic tile,  nylon, polytetrafluoroethylene, food grade rubber or polyurethane.

一、特點

I. Characteristic

1．操作簡單方便、工作可靠、易清洗、對工作條件的適應能力強。

1. Easy and convenient  operation, reliable work, easy cleaning, and strong adaptability to working  conditions.

2．無環境污染，可進行干式、濕式球磨。

2. No pollution to the  environment; ability in both dry grinding and wet grinding

3．重量輕、體積小、效率高，可做成連續生產型。

3. Light weight, small size,  high efficiency, ability in continuous production

二、設備的主要技術參數

Ⅱ. Technical Parameters

注：ZM-T(罐的體積，單位為L)

例：ZM-T4，為裝4 L體積振動球磨機
